Mixture Modeling with MplusAutomation

18 Enumeration

Data Source: The data used to illustrate these analyses include elementary school student Science Attitude survey items collected during 7th and 10th grades from the Longitudinal Study of American Youth (LSAY; Miller, 2015).

To install package {rhdf5}

if (!requireNamespace("BiocManager", quietly = TRUE))
  install.packages("BiocManager")

#BiocManager::install("rhdf5")

Load packages

Read in LSAY data file, lsay_new.csv.


lsay_data <- read_csv(here("data","lsay_lta.csv"), na = c("9999")) %>%
    mutate(across(everything(), as.numeric))

18.1 Descriptive Statistics

18.1.1 Data Summary

data <- lsay_data

select_data <- data %>%
 select(female, minority, ab39m:ga33l)

f <- All(select_data) ~ Mean + SD + Min + Median + Max + Histogram
datasummary(f, data, output="markdown")
Mean SD Min Median Max Histogram
female 0.48 0.50 0.00 0.00 1.00 ▇▆
minority 0.23 0.42 0.00 0.00 1.00 ▇▂
ab39m 0.61 0.49 0.00 1.00 1.00 ▄▇
ab39t 0.40 0.49 0.00 0.00 1.00 ▇▅
ab39u 0.49 0.50 0.00 0.00 1.00 ▇▇
ab39w 0.40 0.49 0.00 0.00 1.00 ▇▅
ab39x 0.46 0.50 0.00 0.00 1.00 ▇▆
ga33a 0.58 0.49 0.00 1.00 1.00 ▅▇
ga33h 0.43 0.49 0.00 0.00 1.00 ▇▅
ga33i 0.51 0.50 0.00 1.00 1.00 ▇▇
ga33k 0.42 0.49 0.00 0.00 1.00 ▇▅
ga33l 0.42 0.49 0.00 0.00 1.00 ▇▅

18.1.2 Correlation Table

select_data %>%
  datasummary_correlation(output = "markdown")
female minority ab39m ab39t ab39u ab39w ab39x ga33a ga33h ga33i ga33k ga33l
female 1 . . . . . . . . . . .
minority -.01 1 . . . . . . . . . .
ab39m -.06 -.01 1 . . . . . . . . .
ab39t -.09 .05 .30 1 . . . . . . . .
ab39u -.11 .03 .30 .48 1 . . . . . . .
ab39w -.11 .06 .27 .46 .40 1 . . . . . .
ab39x -.11 .05 .33 .45 .41 .52 1 . . . . .
ga33a -.05 .04 .19 .11 .13 .13 .15 1 . . . .
ga33h -.06 .04 .10 .15 .16 .16 .20 .40 1 . . .
ga33i -.04 .02 .15 .13 .18 .15 .16 .40 .57 1 . .
ga33k -.07 .04 .13 .15 .15 .20 .18 .39 .54 .48 1 .
ga33l -.04 .05 .15 .15 .14 .18 .23 .44 .56 .49 .62 1

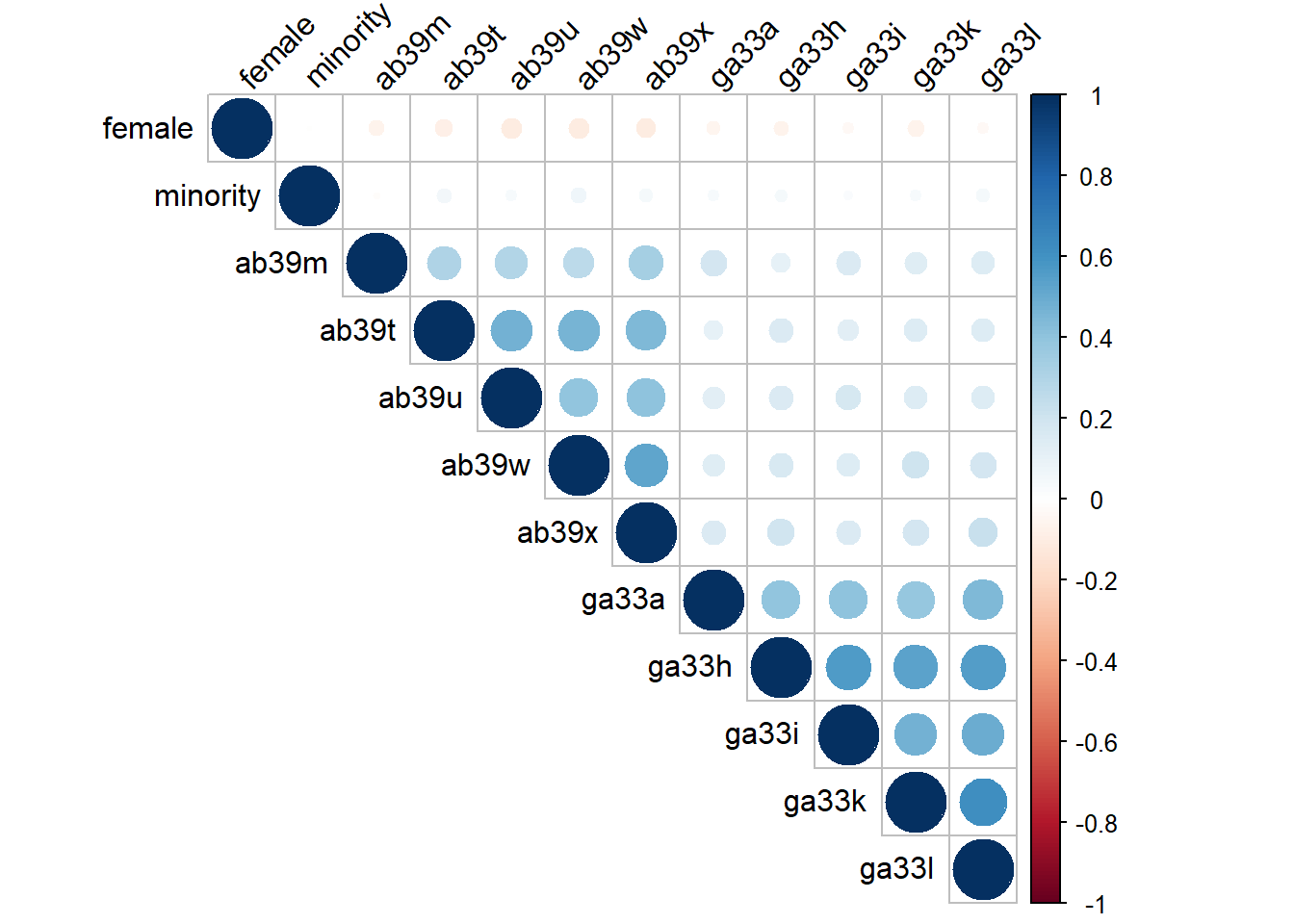

18.1.3 Correlation Plot

f_cor <- data %>%
 select(female, minority, ab39m:ga33l) %>%
  cor(use = "pairwise.complete.obs")

corrplot(f_cor,
         method = "circle",
         type = "upper",
         tl.col="black",
         tl.srt=45)

18.2 Enumeration

18.2.1 Enumerate Time Point 1 (7th grade)

# NOTE CHANGE: '1:6' indicates the number of k-class models to estimate
# User can change this number to fit research context
# In this example, the code loops or iterates over values 1 through 6 ( '{k}' )
#
t1_enum_k_16  <- lapply(1:6, function(k) {
  enum_t1  <- mplusObject(

# The 'glue' function inserts R code within a string or "quoted green text" using the syntax {---}
#
    TITLE = glue("Class-{k}_Time1"),

    VARIABLE = glue(
    "!!! NOTE CHANGE: List of the five 7th grade science attitude indicators !!!
     categorical = ab39m-ab39x;
          usevar = ab39m-ab39x;

     classes = c({k});"),

  ANALYSIS =
   "estimator = mlr;
    type = mixture;
    !!! NOTE CHANGE: The intial and final start values. Reduce to speed up estimation time. !!!
    starts = 500 100;
    processors=10;",

  OUTPUT = "sampstat residual tech11 tech14;",

  PLOT =
    "type = plot3;
    series = ab39m-ab39x(*);",

  usevariables = colnames(lsay_data),
  rdata = lsay_data)

# NOTE CHANGE: Fix to match appropriate sub-folder name
# See after `here` function (e.g., "enum_LCA_time1")
enum_t1_fit <- mplusModeler(enum_t1,
                 dataout=here("lta","enum_t1","t1.dat"),
                 modelout=glue(here("lta","enum_t1","c{k}_lca_enum_time1.inp")),
                 check=TRUE, run = TRUE, hashfilename = FALSE)
})

NEXT STEP Check the output (.out) files to check for convergence warnings or syntax errors.

18.2.2 Enumerate Time Point 2 (10th grade)


t2_enum_k_16  <- lapply(1:6, function(k) {
  enum_t2  <- mplusObject(

    TITLE = glue("Class-{k}_Time2"),

    VARIABLE =
  glue(
    "!!! NOTE CHANGE: List of the five 10th grade science attitude indicators !!!
     categorical = ga33a-ga33l;
          usevar = ga33a-ga33l;

     classes = c({k});"),

  ANALYSIS =
   "estimator = mlr;
    type = mixture;
    starts = 500 100;
    processors=10;",

  OUTPUT = "sampstat residual tech11 tech14;",

  PLOT =
    "type = plot3;
    series = ga33a-ga33l(*);",

  usevariables = colnames(lsay_data),
  rdata = lsay_data)

enum_t2_fit <- mplusModeler(enum_t2,
                 dataout=here("lta","enum_t2","t2.dat"),
                 modelout=glue(here("lta","enum_t2","c{k}_lca_enum_time2.inp")),
                 check=TRUE, run = TRUE, hashfilename = FALSE)
})

18.2.3 Create Model Fit Summary Table

Read all models for enumeration table

output_enum_t1 <- readModels(here("lta","enum_t1"), quiet = TRUE)
output_enum_t2 <- readModels(here("lta","enum_t2"), quiet = TRUE)

Extract model fit data


enum_extract1 <- LatexSummaryTable(output_enum_t1,
                keepCols=c("Title", "Parameters", "LL", "BIC", "aBIC",
                           "BLRT_PValue", "T11_VLMR_PValue","Observations"))

enum_extract2 <- LatexSummaryTable(output_enum_t2,
                keepCols=c("Title", "Parameters", "LL", "BIC", "aBIC",
                           "BLRT_PValue", "T11_VLMR_PValue","Observations"))

18.2.4 Calculate Indices Derived from the Log Likelihood (LL)


allFit1 <- enum_extract1 %>%
  mutate(aBIC = -2*LL+Parameters*log((Observations+2)/24)) %>%
  mutate(CAIC = -2*LL+Parameters*(log(Observations)+1)) %>%
  mutate(AWE = -2*LL+2*Parameters*(log(Observations)+1.5)) %>%
  mutate(SIC = -.5*BIC) %>%
  mutate(expSIC = exp(SIC - max(SIC))) %>%
  mutate(BF = exp(SIC-lead(SIC))) %>%
  mutate(cmPk = expSIC/sum(expSIC)) %>%
  select(1:5,9:10,6:7,13,14) %>%
  arrange(Parameters)

allFit2 <- enum_extract2 %>%
  mutate(aBIC = -2*LL+Parameters*log((Observations+2)/24)) %>%
  mutate(CAIC = -2*LL+Parameters*(log(Observations)+1)) %>%
  mutate(AWE = -2*LL+2*Parameters*(log(Observations)+1.5)) %>%
  mutate(SIC = -.5*BIC) %>%
  mutate(expSIC = exp(SIC - max(SIC))) %>%
  mutate(BF = exp(SIC-lead(SIC))) %>%
  mutate(cmPk = expSIC/sum(expSIC)) %>%
  select(1:5,9:10,6:7,13,14) %>%
  arrange(Parameters)

allFit <- full_join(allFit1,allFit2)

18.3 Format Fit Table

rows_m1 <- 1:6
rows_m2 <- 7:12


allFit %>%
  mutate(Title = str_remove(Title, "_Time*")) %>%
  gt() %>%
  tab_header(
    title = md("**Model Fit Summary Table**")) %>%
  cols_label(
    Title = "Classes",
    Parameters = md("Par"),
    LL = md("*LL*"),
    T11_VLMR_PValue = "VLMR",
    BLRT_PValue = "BLRT",
    BF = md("BF"),
    cmPk = md("*cmP_k*")) %>%
  tab_footnote(
    footnote = md(
    "*Note.* Par = Parameters; *LL* = model log likelihood;
      BIC = Bayesian information criterion;
      aBIC = sample size adjusted BIC; CAIC = consistent Akaike information criterion;
      AWE = approximate weight of evidence criterion;
      BLRT = bootstrapped likelihood ratio test p-value;
      VLMR = Vuong-Lo-Mendell-Rubin adjusted likelihood ratio test p-value;
      cmPk = approximate correct model probability."),
    locations = cells_title()) %>%
  tab_options(column_labels.font.weight = "bold") %>%
  fmt_number(10,decimals = 2,
             drop_trailing_zeros=TRUE,
             suffixing = TRUE) %>%
  fmt_number(c(3:9,11),
             decimals = 2) %>%
  fmt_missing(1:11,
              missing_text = "--") %>%
  fmt(c(8:9,11),
    fns = function(x)
    ifelse(x<0.001, "<.001",
           scales::number(x, accuracy = 0.01))) %>%
  fmt(10, fns = function(x)
    ifelse(x>100, ">100",
           scales::number(x, accuracy = .1))) %>%
  tab_row_group(
    group = "Time-1",
    rows = 1:6) %>%
  tab_row_group(
    group = "Time-2",
    rows = 7:12) %>%
  row_group_order(
      groups = c("Time-1","Time-2")
      ) %>%
   tab_style(
    style = list(
      cell_text(weight = "bold")
      ),
    locations = list(cells_body(
     columns = BIC,
     row = BIC == min(BIC[rows_m1]) # Model 1
    ),
    cells_body(
     columns = aBIC,
     row = aBIC == min(aBIC[rows_m1])
    ),
    cells_body(
     columns = CAIC,
     row = CAIC == min(CAIC[rows_m1])
    ),
    cells_body(
     columns = AWE,
     row = AWE == min(AWE[rows_m1])
    ),
    cells_body(
     columns = cmPk,
     row =  cmPk == max(cmPk[rows_m1])
     ),
    cells_body(
     columns = BIC,
     row = BIC == min(BIC[rows_m2]) # Model 2
    ),
    cells_body(
     columns = aBIC,
     row = aBIC == min(aBIC[rows_m2])
    ),
    cells_body(
     columns = CAIC,
     row = CAIC == min(CAIC[rows_m2])
    ),
    cells_body(
     columns = AWE,
     row = AWE == min(AWE[rows_m2])
    ),
    cells_body(
     columns = cmPk,
     row =  cmPk == max(cmPk[rows_m2])
     ),
    cells_body(
     columns = BF,
     row =  BF > 10),
    cells_body(
     columns =  BLRT_PValue,
     row =  ifelse(BLRT_PValue < .05 & lead(BLRT_PValue) > .05, BLRT_PValue < .05, NA)),
    cells_body(
     columns =  T11_VLMR_PValue,
     row =  ifelse(T11_VLMR_PValue < .05 & lead(T11_VLMR_PValue) > .05, T11_VLMR_PValue < .05, NA))
  )
)
Model Fit Summary Table1
Classes Par LL BIC aBIC CAIC AWE BLRT VLMR BF cmP_k
Time-1
Class-11 5 −10,250.60 20,541.34 20,525.45 20,546.34 20,596.47 – – 0.0 <.001
Class-21 11 −8,785.32 17,658.92 17,623.97 17,669.93 17,780.22 <.001 <.001 0.0 <.001
Class-31 17 −8,693.57 17,523.59 17,469.57 17,540.59 17,711.04 <.001 <.001 0.0 0.00
Class-41 23 −8,664.09 17,512.79 17,439.71 17,535.79 17,766.40 <.001 <.001 >100 1.00
Class-51 29 −8,662.39 17,557.54 17,465.40 17,586.54 17,877.31 1.00 0.66 >100 <.001
Class-61 35 −8,661.54 17,604.01 17,492.80 17,639.01 17,989.94 0.67 0.93 – <.001
Time-2
Class-12 5 −7,658.79 15,356.19 15,340.30 15,361.19 15,409.80 – – 0.0 <.001
Class-22 11 −6,073.81 12,232.56 12,197.61 12,243.56 12,350.50 <.001 <.001 0.0 <.001
Class-32 17 −5,988.36 12,107.99 12,053.98 12,124.99 12,290.27 <.001 <.001 0.5 0.32
Class-42 23 −5,964.45 12,106.50 12,033.43 12,129.51 12,353.12 <.001 0.00 >100 0.68
Class-52 29 −5,961.68 12,147.30 12,055.16 12,176.30 12,458.25 0.67 0.36 >100 <.001
Class-62 35 −5,961.26 12,192.79 12,081.59 12,227.79 12,568.07 1.00 0.57 – <.001
1 Note. Par = Parameters; LL = model log likelihood; BIC = Bayesian information criterion; aBIC = sample size adjusted BIC; CAIC = consistent Akaike information criterion; AWE = approximate weight of evidence criterion; BLRT = bootstrapped likelihood ratio test p-value; VLMR = Vuong-Lo-Mendell-Rubin adjusted likelihood ratio test p-value; cmPk = approximate correct model probability.

18.4 Compare Time 1 & Time 2 LCA Plots

Read models for plotting (4-class models)

model_t1_c4 <- output_enum_t1$c4_lca_enum_time1.out
model_t2_c4 <- output_enum_t2$c4_lca_enum_time2.out

18.4.1 Create a function plot_lca_function that requires 5 arguments:

  • model_name: name of Mplus model object (e.g., model_t1_c4)
  • item_num: the number of items in LCA measurement model (e.g., 5)
  • class_num: the number of classes (k) in LCA model (e.g., 4)
  • item_labels: the item labels for x-axis (e.g., c("Enjoy","Useful","Logical","Job","Adult"))
  • plot_title: include the title of the plot here (e.g., "Time 1 LCA Conditional Item Probability Plot")

plot_lca_function <- function(model_name,item_num,class_num,item_labels,plot_title){

mplus_model <- as.data.frame(model_name$gh5$means_and_variances_data$estimated_probs$values)
plot_t1 <- mplus_model[seq(2, 2*item_num, 2),]

c_size <- as.data.frame(model_name$class_counts$modelEstimated$proportion)
colnames(c_size) <- paste0("cs")
c_size <- c_size %>% mutate(cs = round(cs*100, 2))
colnames(plot_t1) <- paste0("C", 1:class_num, glue(" ({c_size[1:class_num,]}%)"))

plot_t1 <- cbind(Var = paste0("U", 1:item_num), plot_t1)
plot_t1$Var <- factor(plot_t1$Var,
               labels = item_labels)
plot_t1$Var <- fct_inorder(plot_t1$Var)
pd_long_t1 <- melt(plot_t1, id.vars = "Var")

p <- pd_long_t1 %>%
  ggplot(aes(x = as.integer(Var), y = value,
  shape = variable, colour = variable, lty = variable)) +
  geom_point(size = 4) + geom_line() +
  scale_x_continuous("", breaks = 1:5, labels = plot_t1$Var) +
  scale_colour_grey() +
  labs(title = plot_title, y = "Probability") +
  theme_cowplot() +
  theme(legend.title = element_blank(),
        legend.position = "top")

p
return(p)
}

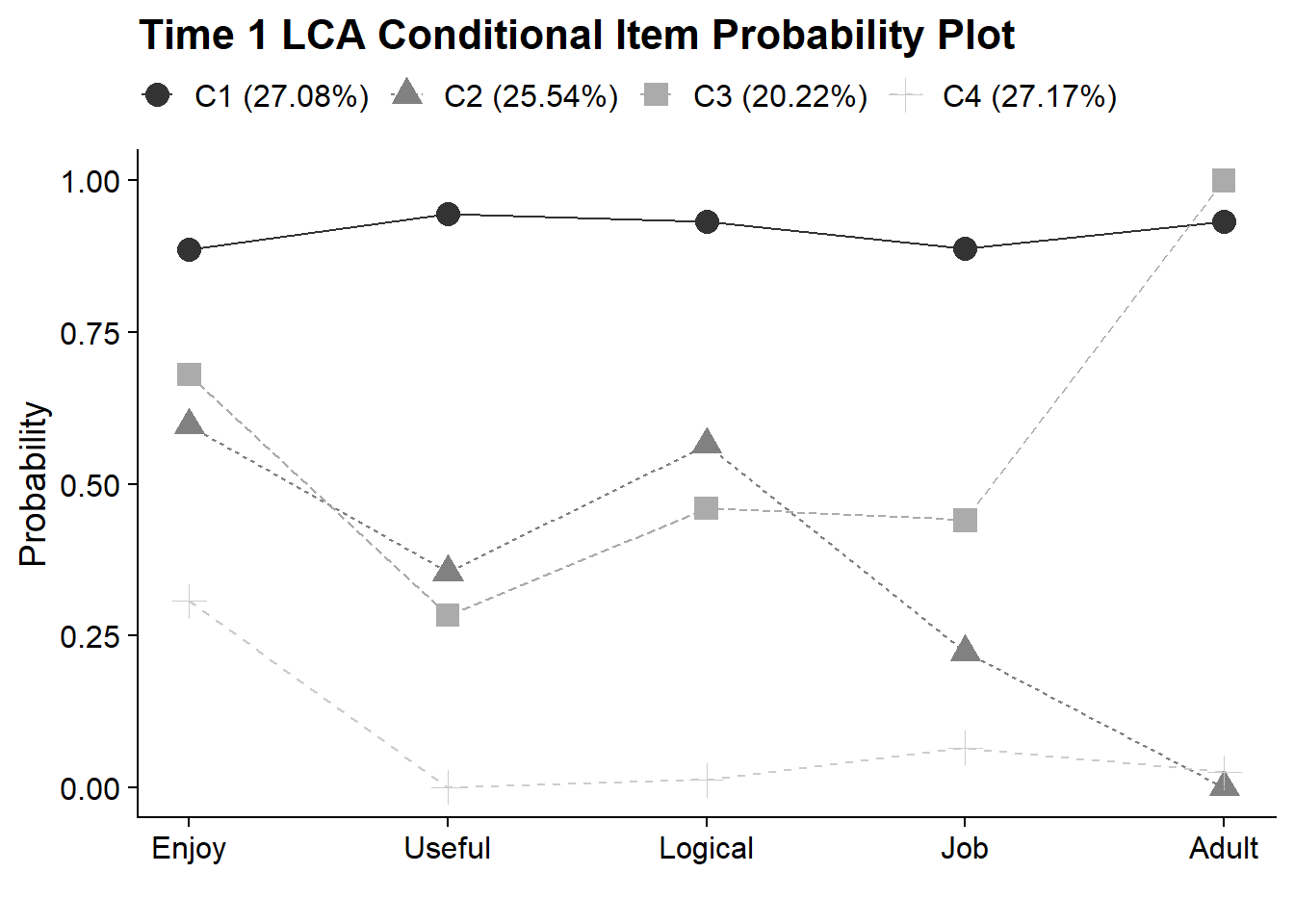

18.4.2 Time 1 LCA - Conditional Item Probability Plot


plot_lca_function(
  model_name = model_t1_c4,
  item_num = 5,
  class_num = 4,
  item_labels = c("Enjoy","Useful","Logical","Job","Adult"),
  plot_title = "Time 1 LCA Conditional Item Probability Plot"
  )
ggsave(here("figures", "t1_c4_lca_plot.png"), dpi=300, height=5, width=7, units="in")

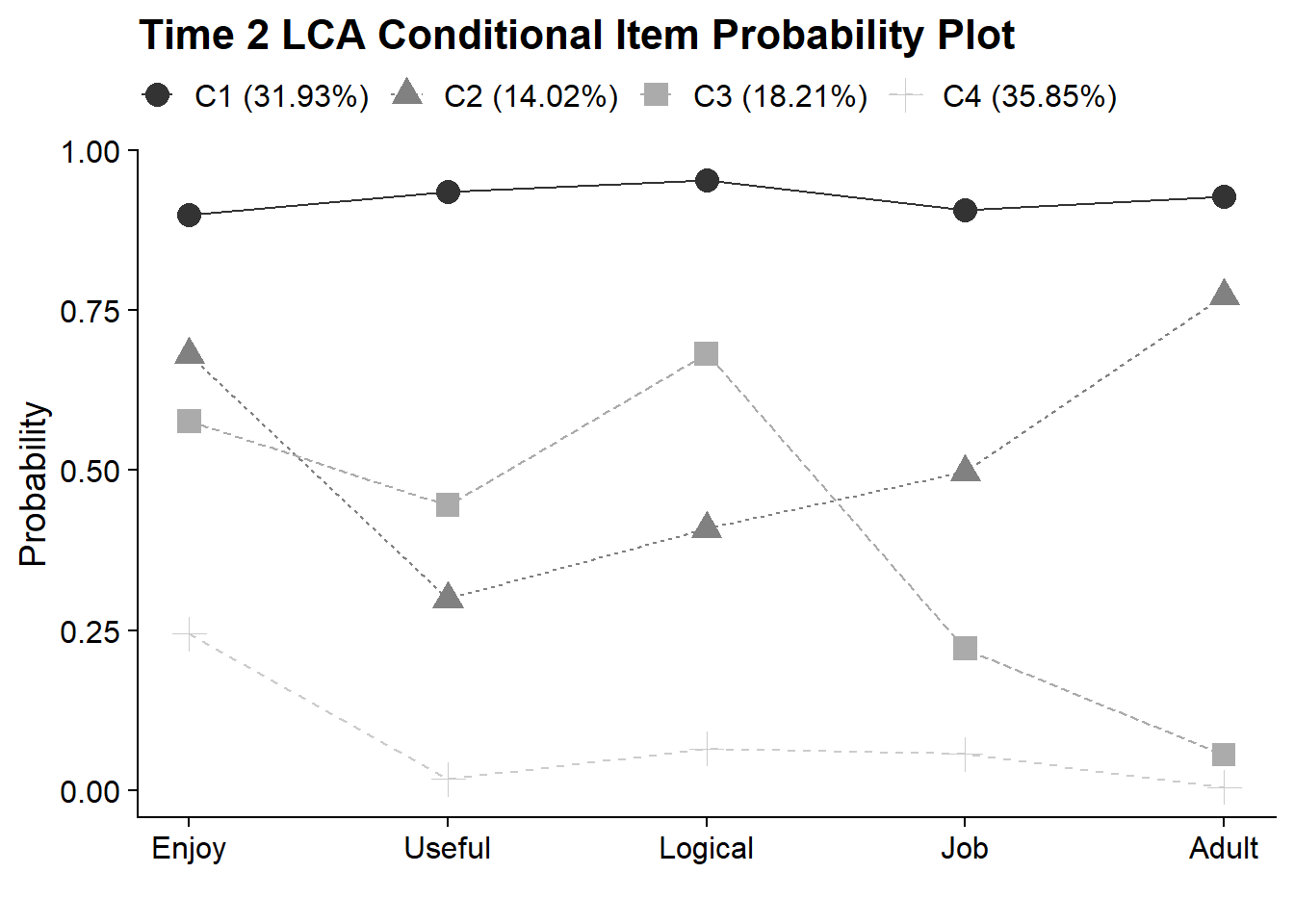

18.4.3 Time 2 LCA - Conditional Item Probability Plot

plot_lca_function(
  model_name = model_t2_c4,
  item_num = 5,
  class_num = 4,
  item_labels = c("Enjoy","Useful","Logical","Job","Adult"),
  plot_title = "Time 2 LCA Conditional Item Probability Plot"
  )
ggsave(here("figures", "t2_c4_lca_plot.png"), dpi=300, height=5, width=7, units="in")

18.5 Estimate Latent Transition Analysis (LTA) Model

18.5.1 Estimate Invariant LTA Model


lta_inv <- mplusObject(

  TITLE =
    "Invariant LTA",

  VARIABLE =
     "usev = ab39m ab39t ab39u ab39w ab39x  ! 7th grade indicators
             ga33a ga33h ga33i ga33k ga33l; ! 10th grade indicators

      categorical = ab39m-ab39x ga33a-ga33l;

      classes = c1(4) c2(4);",

  ANALYSIS =
     "estimator = mlr;
      type = mixture;
      starts = 500 100;
      processors=10;",

  MODEL =
     "%overall%
      c2 on c1;

      MODEL c1:
      %c1#1%
      [AB39M$1-AB39X$1] (1-5);  !!! labels that are repeated will constrain parameters to equality !!!
      %c1#2%
      [AB39M$1-AB39X$1] (6-10);
      %c1#3%
      [AB39M$1-AB39X$1] (11-15);
      %c1#4%
      [AB39M$1-AB39X$1] (16-20);

      MODEL c2:
      %c2#1%
      [GA33A$1-GA33L$1] (1-5);
      %c2#2%
      [GA33A$1-GA33L$1] (6-10);
      %c2#3%
      [GA33A$1-GA33L$1] (11-15);
      %c2#4%
      [GA33A$1-GA33L$1] (16-20);",

  SAVEDATA =
   "file = LTA_Inv_CPROBS.dat;
    save = cprob;
    missflag = 9999;",

  OUTPUT = "tech1 tech15 svalues;",

  usevariables = colnames(lsay_data),
  rdata = lsay_data)

lta_inv_fit <- mplusModeler(lta_inv,
                 dataout=here("lta","lta_model","lta.dat"),
                 modelout=here("lta","lta_model","4-class-invariant.inp"),
                 check=TRUE, run = TRUE, hashfilename = FALSE)

18.5.2 Estimate Non-Invariant Estimated LTA Model


lta_non_inv <- mplusObject(

  TITLE =
    "Non-Invariant LTA",

  VARIABLE =
     "usev = ab39m ab39t ab39u ab39w ab39x  ! 7th grade indicators
             ga33a ga33h ga33i ga33k ga33l; ! 10th grade indicators

      categorical = ab39m-ab39x ga33a-ga33l;

      classes = c1(4) c2(4);",

  ANALYSIS =
     "estimator = mlr;
      type = mixture;
      starts = 500 100;
      processors=10;",

  MODEL =
     "%overall%
      c2 on c1; !!! estimate all multinomial logistic regressions !!!

      !!! The above syntax can also be written as: !!!
               ! c2#1 on c1#1 c1#2 c1#3; !
               ! c2#2 on c1#1 c1#2 c1#3; !
               ! c2#3 on c1#1 c1#2 c1#3; !

      MODEL c1: !!! the following syntax will allow item thresholds to be estimated for each class (e.g. noninvariance) !!!

      %c1#1%
      [AB39M$1-AB39X$1];
      %c1#2%
      [AB39M$1-AB39X$1];
      %c1#3%
      [AB39M$1-AB39X$1];
      %c1#4%
      [AB39M$1-AB39X$1];

      MODEL c2:
      %c2#1%
      [GA33A$1-GA33L$1];
      %c2#2%
      [GA33A$1-GA33L$1];
      %c2#3%
      [GA33A$1-GA33L$1];
      %c2#4%
      [GA33A$1-GA33L$1];",

  OUTPUT = "tech1 tech15 svalues;",

  usevariables = colnames(lsay_data),
  rdata = lsay_data)

lta_non_inv_fit <- mplusModeler(lta_non_inv,
                     dataout=here("lta","lta_model","lta.dat"),
                     modelout=here("lta","lta_model","4-class-non-invariant.inp"),
                     check=TRUE, run = TRUE, hashfilename = FALSE)

18.5.3 Conduct Sattorra-Bentler adjusted Log Likelihood Ratio Difference Testing

  • non-invariant (comparison): This model has more parameters.

  • invariant (nested): This model has less parameters.


# *0 = null or nested model & *1 = comparison  or parent model

lta_models <- readModels(here("lta","lta_model"), quiet = TRUE)

# Log Likelihood Values
L0 <- lta_models[["X4.class.invariant.out"]][["summaries"]][["LL"]]
L1 <- lta_models[["X4.class.non.invariant.out"]][["summaries"]][["LL"]]

# LRT equation
lr <- -2*(L0-L1)

# Parameters
p0 <- lta_models[["X4.class.invariant.out"]][["summaries"]][["Parameters"]]
p1 <- lta_models[["X4.class.non.invariant.out"]][["summaries"]][["Parameters"]]

# Scaling Correction Factors
c0 <- lta_models[["X4.class.invariant.out"]][["summaries"]][["LLCorrectionFactor"]]
c1 <- lta_models[["X4.class.non.invariant.out"]][["summaries"]][["LLCorrectionFactor"]]

# Difference Test Scaling correction
cd <- ((p0*c0)-(p1*c1))/(p0-p1)

# Chi-square difference test(TRd)
TRd <- (lr)/(cd)

# Degrees of freedom
df <- abs(p0 - p1)


# Significance test
(p_diff <- pchisq(TRd, df, lower.tail=FALSE))
#> [1] 0.6245173

RESULT: The Log Likelihood \(\chi^2\) difference test comparing the invariant and non-invariant LTA models was, \(\chi^2 (20) = 21.542, p = .624\).

Reference

Read invariance model and extract parameters (intercepts and multinomial regression coefficients)


lta_inv1 <- readModels(here("lta","lta_model","4-Class-Invariant.out" ), quiet = TRUE)

par <- as_tibble(lta_inv1[["parameters"]][["unstandardized"]]) %>%
  select(1:3) %>%
  filter(grepl('ON|Means', paramHeader)) %>%
  mutate(est = as.numeric(est))

Manual method to calculate transition probabilities:

Although possible to extract transition probabilities directly from the output the following code illustrates how the parameters are used to calculate each transition. This is useful for conducting advanced LTA model specifications such as making specific constraints within or between transition matrices, or testing the equivalence of specific transition probabilities.

# Name each parameter individually to make the subsequent calculations more readable
a1 <- unlist(par[13,3]); a2 <- unlist(par[14,3]); a3 <- unlist(par[15,3]); b11 <- unlist(par[1,3]);
b21 <- unlist(par[4,3]); b31 <- unlist(par[7,3]); b12 <- unlist(par[2,3]); b22 <- unlist(par[5,3]);
b32 <- unlist(par[8,3]); b13 <- unlist(par[3,3]); b23 <- unlist(par[6,3]); b33 <- unlist(par[9,3])

# Calculate transition probabilities from the logit parameters
t11 <- exp(a1+b11)/(exp(a1+b11)+exp(a2+b21)+exp(a3+b31)+exp(0))
t12 <- exp(a2+b21)/(exp(a1+b11)+exp(a2+b21)+exp(a3+b31)+exp(0))
t13 <- exp(a3+b31)/(exp(a1+b11)+exp(a2+b21)+exp(a3+b31)+exp(0))
t14 <- 1 - (t11 + t12 + t13)

t21 <- exp(a1+b12)/(exp(a1+b12)+exp(a2+b22)+exp(a3+b32)+exp(0))
t22 <- exp(a2+b22)/(exp(a1+b12)+exp(a2+b22)+exp(a3+b32)+exp(0))
t23 <- exp(a3+b32)/(exp(a1+b12)+exp(a2+b22)+exp(a3+b32)+exp(0))
t24 <- 1 - (t21 + t22 + t23)

t31 <- exp(a1+b13)/(exp(a1+b13)+exp(a2+b23)+exp(a3+b33)+exp(0))
t32 <- exp(a2+b23)/(exp(a1+b13)+exp(a2+b23)+exp(a3+b33)+exp(0))
t33 <- exp(a3+b33)/(exp(a1+b13)+exp(a2+b23)+exp(a3+b33)+exp(0))
t34 <- 1 - (t31 + t32 + t33)

t41 <- exp(a1)/(exp(a1)+exp(a2)+exp(a3)+exp(0))
t42 <- exp(a2)/(exp(a1)+exp(a2)+exp(a3)+exp(0))
t43 <- exp(a3)/(exp(a1)+exp(a2)+exp(a3)+exp(0))
t44 <- 1 - (t41 + t42 + t43)

18.5.4 Create Transition Table


t_matrix <- tibble(
  "Time1" = c("C1=Anti-Science","C1=Amb. w/ Elevated","C1=Amb. w/ Minimal","C1=Pro-Science"),
  "C2=Anti-Science" = c(t11,t21,t31,t41),
  "C2=Amb. w/ Elevated" = c(t12,t22,t32,t42),
  "C2=Amb. w/ Minimal" = c(t13,t23,t33,t43),
  "C2=Pro-Science" = c(t14,t24,t34,t44))

t_matrix %>%
  gt(rowname_col = "Time1") %>%
  tab_stubhead(label = "7th grade") %>%
  tab_header(
    title = md("**Student transitions from 7th grade (rows) to 10th grade (columns)**"),
    subtitle = md("&nbsp;")) %>%
  fmt_number(2:5,decimals = 2) %>%
  tab_spanner(label = "10th grade",columns = 2:5) %>%
  tab_footnote(
    footnote = md(
    "*Note.* Transition matrix values are the identical to Table 5, however Table 5
    has the values rearranged by class for interpretation purposes. Classes may be arranged
    directly through Mplus syntax using start values."),
    locations = cells_title())
Student transitions from 7th grade (rows) to 10th grade (columns)1
 1
7th grade
10th grade
C2=Anti-Science C2=Amb. w/ Elevated C2=Amb. w/ Minimal C2=Pro-Science
C1=Anti-Science 0.27 0.27 0.32 0.15
C1=Amb. w/ Elevated 0.09 0.56 0.19 0.16
C1=Amb. w/ Minimal 0.15 0.21 0.52 0.12
C1=Pro-Science 0.08 0.35 0.27 0.30
1 Note. Transition matrix values are the identical to Table 5, however Table 5 has the values rearranged by class for interpretation purposes. Classes may be arranged directly through Mplus syntax using start values.
